Custom Designs 380-400/410-470MHz RF Cavity Duplexer Combiner N Female Connector

Low PIM RF Dual Band Duplexer covers frequency 380-400MHz 410-470MHz. It is easy for installation.

Item NO.:
MND-3944-NF-150
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Ningbo
Color:
Grey

Inquiry now

Products Details

Product Name

380-400MHz 410-470MHz rf duplexer combiner

Dual band combiner for use with a BTS and is designed for co-siting purposes.

Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Product Name	50W Duplexer
Frequency Band(MHz)	380-400MHz/410-470MHz
Insertion Loss(dB)	≤0.6
Isolation(dB)	≥40dB@410-470MHz&410-470MHz
power	100W
Rejection	≥40dB
PIM3	≥150dBc@2*43dBm
Impedance	50 Ohm
Operating Temp Range	-25℃～+60℃
Storage temp range	-50ºC~+85ºC
Relative Humidity	5-95%
Connector	N Female
Weight	1.2kg
Packing	1 pc in box

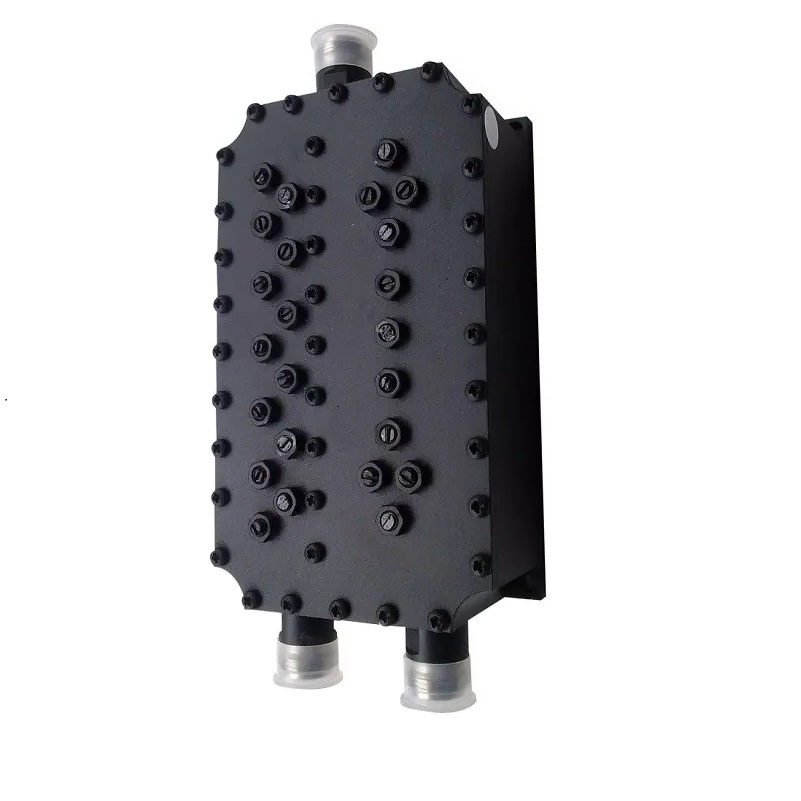

Product Pictures
