Maniron 850MHz Signal band Signal Repeater Mobile Booster

Repeater with low power, high gain, light weight and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.

Item NO.:
M37T-850-N
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
White

Inquiry now

Products Details

Product Name

Maniron 850MHz Signal band Signal Repeater Mobile Booster

Application

Boosting the mobile signal strength, increase mobile signal in building coverage.

Technical & Mechanical Specifications

Parameter Data	Uplink		Downlink
Frequency Range	890-915MHz		935-960MHz
Output Power	40±2 dBm		43±2 dBm
Gain	90±2 dB		95±2 dB
Ripple in band	≤6~15dB
Function	Auto Gain Control/Auto Shut Off/MGC
Noise Figure@max. gain	≤6 dB
Spurious emission	9KHz~1GHz	≤-36 dBm	≤-36 dBm
	1GHz~12.75GHz	≤-30 dBm	≤-30 dBm
MTBF	＞100,000 hours
RF Connector	N-Female
Size	490410190mm
Operating Temperature	-10℃~+55℃

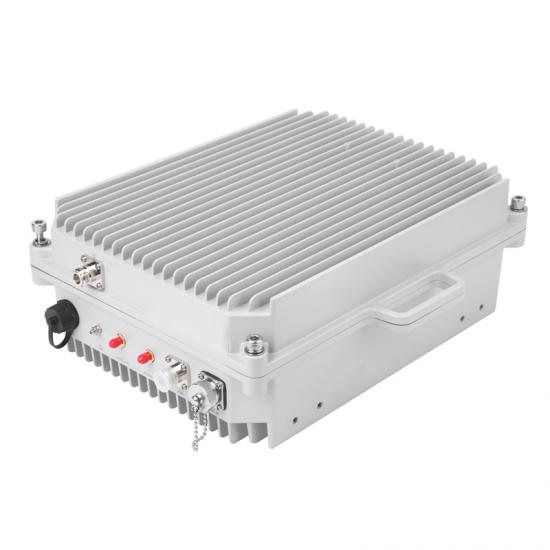

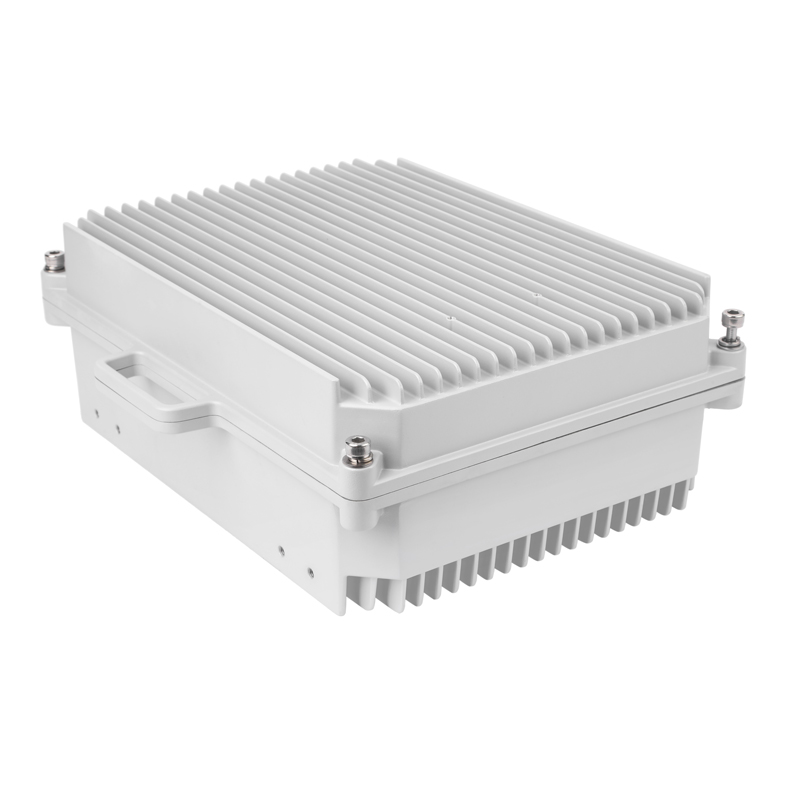

Product Picture

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Maniron 850MHz Signal band Signal Repeater Mobile Booster
Im interested in your "Maniron 850MHz Signal band Signal Repeater Mobile Booster", please inform me more detailed product information and price. Thankyou!
